Geopak PVC Cladding
Geopak PVC Cladding
PRODUCT DESCRIPTION
GeoPak PVC Cladding is a physiologically harmless rigid PVC protection film designed for the protection and finishing of insulated piping systems.
It provides a clean, durable and mechanically resistant outer surface for insulated pipes, elbows, flanges, valves and pipe support areas.
KEY FEATURES
- Physiologically harmless rigid PVC film
- Light grey matte finish, similar to RAL 7035
- Smooth surface with long-lasting clean appearance
- Resistant to most common chemical agents
- Excellent mechanical resistance
- High water vapor resistance
- Suitable for insulated piping systems and accessories
TYPICAL APPLICATIONS
- External protection of insulated piping systems
- Insulated steel, copper and stainless steel pipe elbows
- Flange and valve covering
- Insulated pipe support covering
- Mechanical insulation finishing applications
TECHNICAL DATA
Parameter | GeoPak PVC Cladding |
Product Type | Rigid PVC protection film for insulated pipes |
Material | Rigid PVC film |
Colour / Finish | Light grey matte, similar to RAL 7035 |
Surface | Smooth surface with long-lasting clean appearance |
Chemical Resistance | Resistant to most common chemical agents |
Foil Thickness | 0.25 mm |
Accessory Thickness | 0.35 mm |
Water Vapor Resistance | µ > 50,000 |
Fire Classification | BL-s3,d0 according to EN 13501-1 |
Specific Weight | Approx. 1450 kg/m³ |
ACCESSORIES
Accessory | Description |

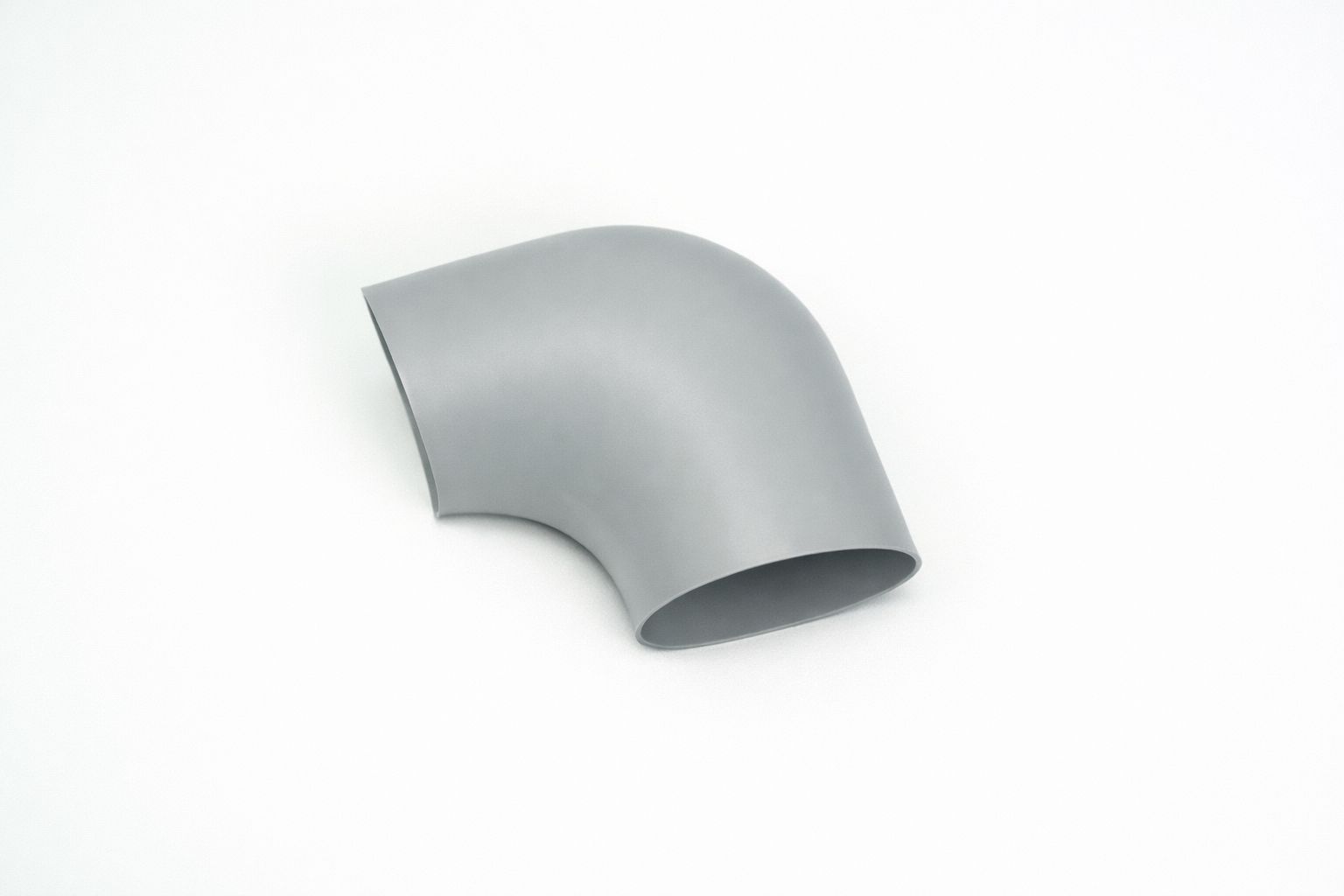

90° SR Elbows | Short radius elbows, suitable for most insulated steel, copper and stainless steel elbows |
90° LR Elbows | Long radius elbows, ideal for insulated 3D steel elbows |
T-Joints | For insulated pipe connection points |
Flange Caps | Also suitable for valve and insulated pipe support covering |
Plastic Rivets | Grey matte finish |
Punch Tool | For installing plastic rivets |
PACKAGING INFORMATION
Product | Packaging Information |
Rolls | Thickness: 0.25 mm |
Roll Width | 1,000 mm |
Roll Length | 55 m |
Area per Roll | 55 m² |
Approx. Weight per Roll | ≤ 25 kg |
Roll Wrapping | Wrapped in PE foils |
Rolls per Wooden Box | 60 |
Total Area per Box | 3,300 m² |
Elbows | Wrapped in PE foils |
Elbow Packing | 20, 50 or 100 pieces per bag, depending on size |
DIAMETER COMBINATION GUIDE
The following recommendations are based on standard reference conditions. Final material selection must be verified according to the actual operating parameters, installation configuration, mechanical loads and environmental conditions of the project.
Diameter in mm (Dia Pipe + 2 × Insul.) | Option 1 | Option 2 | Option 3 | Option 4 |
Φ42 | 13 × 16 |
|
|
|
Φ48 | 19 × 10 |
|
|
|
Φ54 | 19 × 16 |
|
|
|
Φ60 | 25 × 10 | 19 × 22 |
|
|
Φ67 | 25 × 16 | 19 × 28 |
|
|
Φ73 | 25 × 22 | 19 × 38 |
|
|
Φ79 | 25 × 28 | 19 × 42 |
|
|
Φ88 | 25 × 38 | 19 × 48 |
| 13 × 76 |
Φ102 | 30 × 42 | 25 × 48 | 19 × 63 | 18 × 76 |
Φ116 | 40 × 35 | 32 × 48 | 25 × 63 | 25 × 76 |
Φ127 | 50 × 28 | 40 × 48 | 32 × 64 | 25 × 89 |
Φ141 | 50 × 42 | 40 × 60 | 32 × 67 | 25 × 102 |
Φ155 | 50 × 48 | 40 × 76 | 32 × 89 | 32 × 102 |
Φ168 | 60 × 48 | 50 × 67 | 40 × 89 | 32 × 114 |
Φ180 | 70 × 42 | 60 × 60 | 50 × 80 | 32 × 130 |
Φ193 | 70 × 50 | 60 × 73 | 50 × 89 | 50 × 114 |
Φ219 | 80 × 60 | 70 × 80 | 60 × 102 | 50 × 139 |
Φ245 | 80 × 80 | 70 × 102 | 60 × 125 | 50 × 169 |
Φ273 | 80 × 114 | 70 × 133 | 60 × 150 | 50 × 200 |
Φ299 | 80 × 139 | 70 × 160 | 60 × 180 | 50 × 220 |
Φ323 | 80 × 160 | 70 × 180 | 60 × 200 | 50 × 255 |
Φ356 | 80 × 195 | 70 × 219 | 60 × 235 | 50 × 280 |
Φ381 | 80 × 220 | 70 × 240 | 60 × 260 | 50 × 305 |
Φ406 | 80 × 245 | 70 × 265 | 60 × 285 | 50 × 330 |
Φ432 | 80 × 270 | 70 × 290 | 60 × 310 | 50 × 355 |
Φ457 | 80 × 295 | 70 × 315 | 60 × 335 |
|
